# Building Masks

The mask builder works by toggling filters or/and a noise together.

These masks allow to automatically apply the Sub-Layer Material on the terrain.

The functions described below applies to the whole mask and not the individual filters.

![](https://content.gitbook.com/content/mlqGhioNPOejbOqn53Jr/blobs/xNip28IiR9lv8dW3v2dX/Mask_1.png)

<table><thead><tr><th width="150" align="right">Number</th><th width="628.4285714285713">Function</th><th data-hidden></th></tr></thead><tbody><tr><td align="right">1</td><td>Changes how the masks act with the manually drawn areas of the Sub-Layer. See <a href="/panoramake-legacy-docs/interface-overview/builder-interface/building-masks/manual-sub-layer-drawing.md">Manual Sub-Layer Drawing</a> for more information.</td><td></td></tr><tr><td align="right">2</td><td>Clicking on the rectangle shows the color picker, to change the color of the layer when in LOOKDEV View. See <a href="/panoramake-legacy-docs/interface-overview/builder-interface/lookdev-view.md">LOOKDEV </a><a href="/panoramake-legacy-docs/interface-overview/builder-interface/lookdev-view.md">View</a> for more information.</td><td></td></tr><tr><td align="right">3</td><td><ul><li>Contrasts, Increase/Decrease force of the Sub-Layer mask. <br>The Force multiplies the mask by itself to increase its force.</li><li>The steps values steps down the values instead of letting them smooth if set to a value greater than 0.</li><li>The "Start from white mask" sets the mask to start to 1 instead of 0. </li></ul></td><td></td></tr></tbody></table>

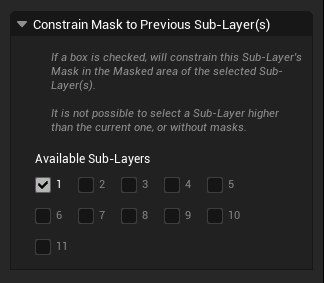

The **"Contrain Mask to Sub-Layer"** options allows you to constrain the Mask of the current Sub-Layer to one or more Sub-Layers, as long as they are under the Sub-Layers being edited and have valid masks.

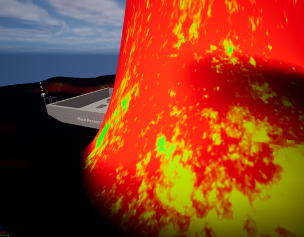

<div><figure><img src="https://content.gitbook.com/content/mlqGhioNPOejbOqn53Jr/blobs/7cdK7eHsCbn9w4tfwduC/image.png" alt=""><figcaption></figcaption></figure> <figure><img src="https://content.gitbook.com/content/mlqGhioNPOejbOqn53Jr/blobs/XB4Vh5PNF5RLknBj5eCp/image.png" alt=""><figcaption><p>The Sub-Layer 2 (Green) is constrained <br>to the Sub-Layer 1 (Red).</p></figcaption></figure></div>

The next page will show in more detail each filters.
